VAG CEREX® 300 - water

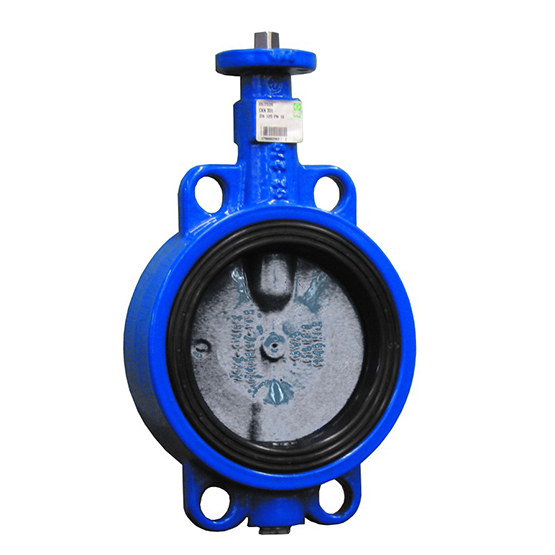

The VAG CEREX® 300-W Wafer-Type and 300-L Lug-Type Butterfly Valves are resilient-seated valves with disks made of stainless steel. 300-W for flange mounting between pipelines and 300-L for flange mounting to pipelines. With replaceable liner mounted on a vulcanised seal carrier ring, and disk with triple bearing.

Suitable for use in water treatment, water distribution, in dams, power plants and in industry. With NBR seal for wastewater and gas or EPDM for water. DVGW tested and registered.

PN: 10-16 - DN: 50...600

Downloads
Technical datasheet
Assembly and operating instruction
DVGW-NW Certificate

VAG WATER & SEVAGE

Any questions?

Fredrik Ekeroth
Solution Seller
Phone. +46 54-57 92 06

Fredrik.Ekeroth@askalon.se

Fredrik Malmström
Solution Seller
Phone. +46 40-33 02 33

Fredrik.Malmstrom@askalon.se

Johan Mattsson
Account Manager Infrastructure
Phone. +46 54-57 92 52

Johan.Mattsson@askalon.se

Frank Kirk Hansen
Account Manager
Phone. +45 4053 6511

Frank.Kirk@askalon.dk

Kenn Gerwien
Account Manager
Phone. +45 2346 5513

Kenn.Gerwien@askalon.dk

Specifications
Material
Product request

Sealing system/standard: Resilient seated in accordance with EN 593
Face-to-face length: acc. to EN 558, basic series 20 (DIN 3202 / K1)
Wafer-type for flanges acc. to EN 1092-2
Centric disk, mounted in three maintenance-free bearing bushes
For installation between pipe flanges for PN 10 and 16
Replaceable rubber sleeve with integrated seal for functionally reliable use for flared flanges, welding flanges, PE flanges as well as loose flanges with V-collar
Stable sealing seat due to collar with vulcanized support ring
Vacuum tight up to 0,1 bar absolute
Tight in both flow directions
Triple shaft bearing

Body: Ductile iron EN-GJS-400-15 (GGG-40)
Disk: Stainless steel 1.4408
Shaft end: Stainless steel 1.4021
NBR: Suitable for wastewater
EPDM: Suitable for use in water treatment, water distribution, in dams, power plants and in industry
Body: Internally and externally epoxy coated
Disk: Epoxy coated
